Movable Circular Storage And Transfer Hoppers For Material Conveying

Name: Movable Circular Storage And Transfer Hoppers For Material Conveying
Brand: Hongwang
Price: 1 USD

Place of Origin : China

Supply Ability : 20 Sets per month

Cleaning Water Pressure : 0.2-0.3MPa

Warranty : 12 Months

Brand Name : Hongwang

Packaging Details : wooden case

Temperature Range : -30~120℃

Certification : ISO9001

Item Name : Circular Turnover Hopper

Payment Terms : ,T/T

Delivery Time : 7- 10 work days

Price : Negotiable

Pressure Resistance Of Silos : -0.1~+0.1MPa

Volume : 150-1000L

MOQ : 1set

Material : Stainless Steel

Model Number : LDC150/400/600/1000

Condition : Brand New

Contact Now

Movable Circular Storage And Transfer Hoppers For Material Conveying

Description:

Stainless Steel Mobile Circular Transfer Hopper is custom-manufactured for pharmaceutical, food and chemical solid preparation production lines, made entirely of high-quality 304 or 316L stainless steel with mirror polished inner and outer surfaces to meet GMP production standards. The upper part adopts cylindrical round structure and the bottom is designed with conical hopper, which ensures smooth blanking without material bridging and residue accumulation, greatly improving raw material transfer efficiency.

Equipped with sturdy stainless steel support frame and heavy-duty universal casters including brake wheels, the circular turnover bin realizes flexible free movement between mixing, granulation, coating and filling equipment on the workshop floor, realizing closed-loop turnover of granular and powdery raw materials to avoid cross-contamination. We support customized volume ranging from 50L to 2000L, optional quick-clamp inlet and outlet connections to match different processing machines. Widely used in tablet, capsule, granule production as intermediate material storage and transfer container, durable structure, easy to clean and sterilize, it is an essential auxiliary equipment for modern clean production workshops.

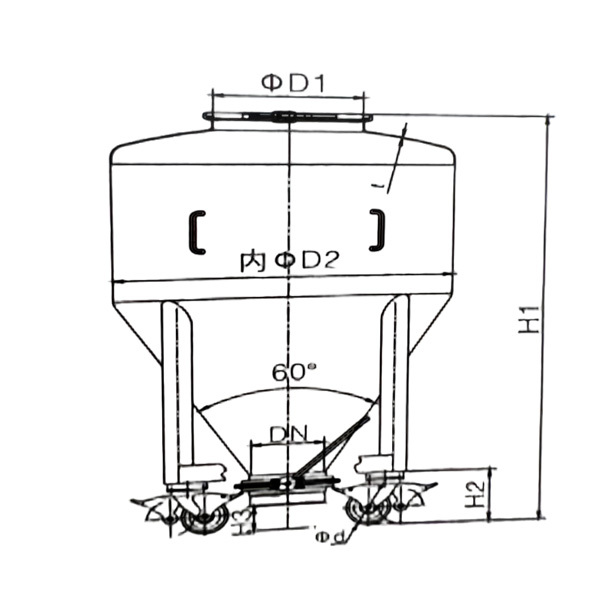

Specification:

Model	Volume (L)	Main structural dimensions
Model	Volume (L)	H1	H2	H3	φD1	φD2	φd	DN
LDC150	150	992	140	167	400	750	100	200
LDC200	200	1104	140	167	400	750	100	200
LDC300	300	1106	185	87	400	900	125	200
LDC400	400	1261	185	87	400	900	125	200
LDC500	500	1416	185	87	400	900	125	200
LDC600	600	1468	185	231	500	1200	125	250
LDC800	800	1654	185	231	500	1200	125	250
LDC1000	1000	1654	185	81	500	1200	125	250
